Screen printing Accessories
Maginifier

Magnifier for checking mesh count

Item no. Sepec.

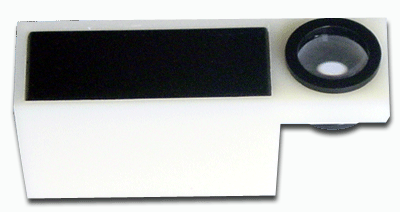

¡¡ 50 fold pen type magnifier
specification50¡Á23¡Á138mm
technical parameters:
digital value hole dimention: 0.085
magnifying fold50
object linear observation¦Õ3.24mm
All the optical glasses are plated with transparency
improving membrane.
Dimension: ¦Õ12¡Á122mm with aluminum alloy sleeve.


WS-M05-1
¡¡
¡¡ ¡¡
¡¡

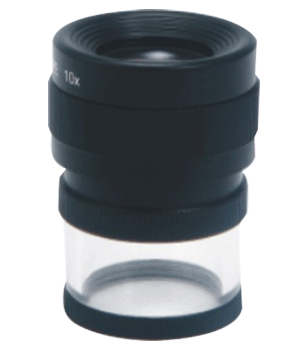

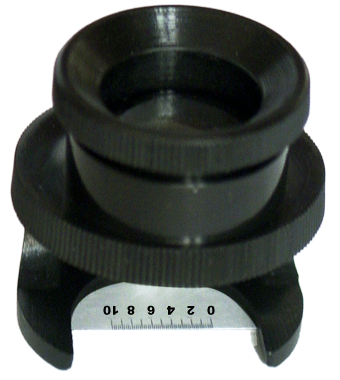

10 fold scaled magnifier
 specification£º31mm¡Á¦µ16

¡¡
WS-M06
¡¡
¡¡







10 fold scaled magnifier
 specification£º31mm¡Á¦µ16

¡¡
WS-M07
¡¡
¡¡

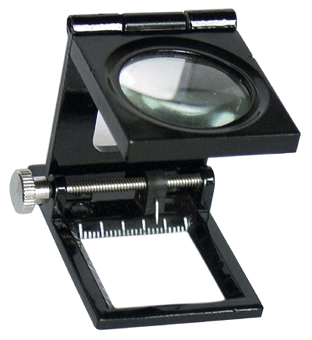

10 times three fold magnifier
£¨plastics frame£©
 specification£º40mm¡Á¦Õ22


¡¡
WS-M08
¡¡
¡¡









10 times three fold magnifier
( metal frame)
 specification51mm¡Á¦Õ30

¡¡
WS-M09
¡¡
¡¡







10 times three fold magnifier( metal frame)
 specification47mm¡Á¦Õ30


¡¡
WS-M010
¡¡
¡¡

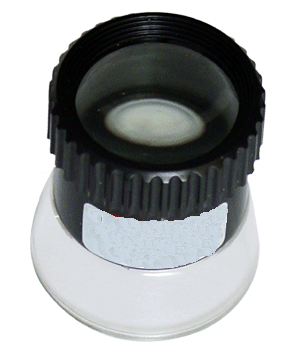

10 fold cylinder magnifier
 specification£º38mm¡Á¦µ26


¡¡
WS-M011
¡¡
¡¡









10 fold cylinder magnifier (metal frame)
 specification38mm¡Á¦µ26

¡¡
WS-M012
¡¡
¡¡ ¡¡
¡¡

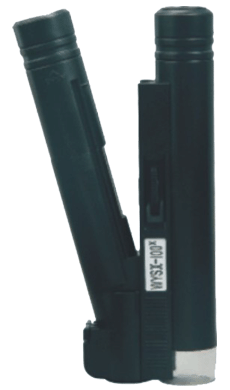

100 fold mini microscope with illuminant
 specification: 50¡Á23¡Á138mm
1. focus adjustable, with self-supplied illuminant for
lighting the observation field. Will not be influenced by environment lighting for using.
2. with scale for reading the practical size of tiny items.

¡¡
WS-M013
¡¡
¡¡

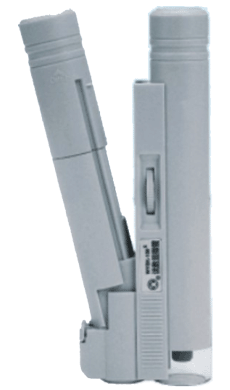

100 fold microscope with illuminant
reading(with scale 1DIV/0.01mm)
 specification: 50¡Á23¡Á138mm
1. focus adjustable, with self-supplied illuminant for
lighting the observation field. Will not be influenced by environment lighting for using.
2. with scale for reading the practical size of tiny items.
3. when it is clear during focusing with this microscope, one division in the microscope in the scale equals to 0.01mm; 0¡«1 equals 1mm and the measuring is from 0-4mm.
4. can magnify 40 fold for clear and precise checking and measuring. The minimum division is 0.01mm



WS-M014
¡¡
¡¡ ¡¡
¡¡

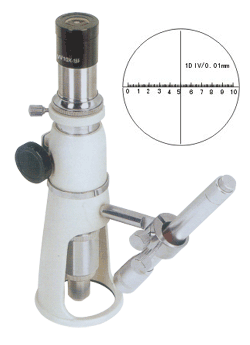

100 micoscope with illuminant measure
 spec:¦µ63mm¡Á210mm
1. focus adjustable, with self-supplied illuminant for lighting the observation field. Will not be influenced by environment lighting for using.
2. 100 Times amplification. The focal distance regulates the scope: 30mm , Clearance with accurate observation.

3. objective measurement: Each space is 0.01 mms,Total measuring range is 1 mm.





WS-M015
¡¡
